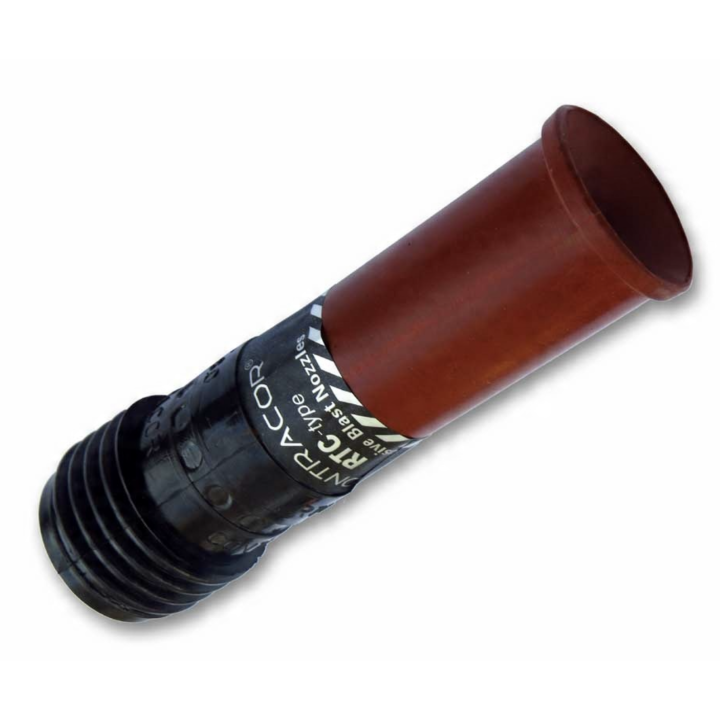

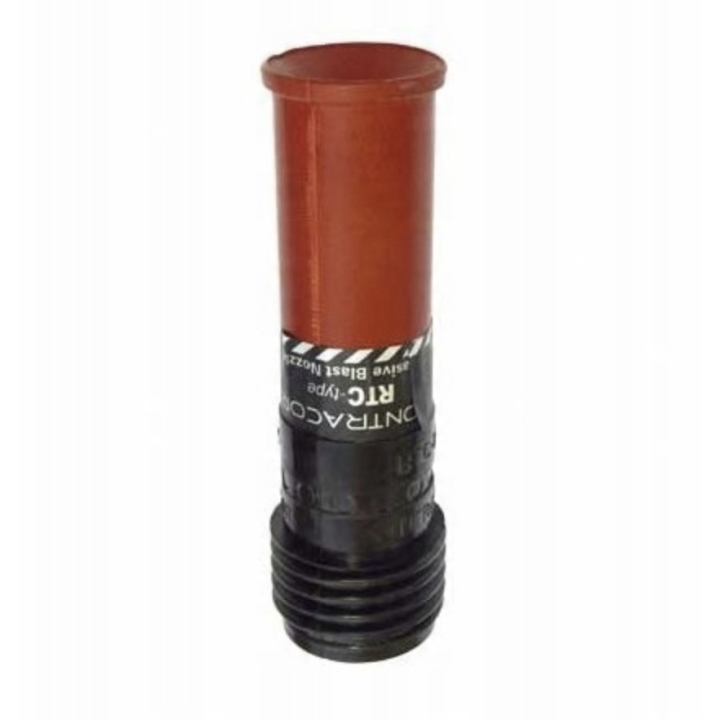

Short nozzle for abrasive blasting and sandblasting – CONTRACOR Venturi RTC.

Specially shaped RTC orifice nozzles provide a wide spray pattern, and thanks to the Venturi cone design, the velocity of the ejected abrasive increases by up to 100% at a given pressure.

Venturi nozzles significantly speed up the blasting process and improve work efficiency by about 40% compared to straight orifice nozzles, while reducing abrasive consumption by up to 40%.

RTC Venturi Nozzle Technical Specifications:

• Inner nozzle diameter: 5.0; 6.5; 8.0 mm
• Operational durability: up to 400 working hours
• Coating: protective rubber to prevent damage from drops or impacts
• Thread: 50 mm rubber – standard for NHP-type holders
• Inlet size (cone): 32 mm
• Length: 130 mm
• Weight: 675 g
• Compatibility: fits NHP-3/4, NHP-1, NHP-2 holders
